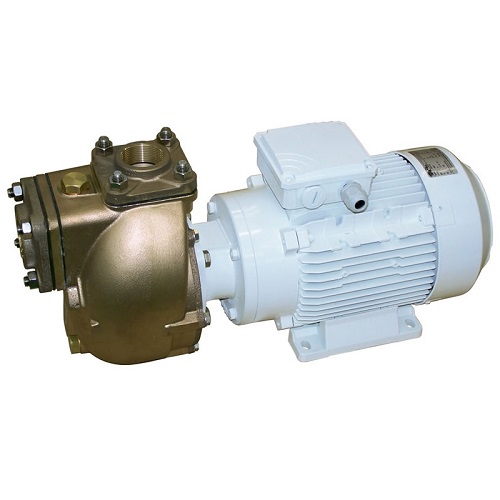

CEM AM self priming centrifugal pumps
CEM AM serie includes self priming centrifugal electric pumps made in bronze (slow priming) capable of transfer or supply large flow of liquid. They are widely used in the nautical sector to empty bilges, fire-fighting equipment, ballast, washing of decks and chains and air conditioning systems. The particular impeller shape allows the transferring of liquid with small solid parts in suspension.
CONSTRUCTION FEATURES
- Pump body: BRONZE
- Motor support: BRONZE
- Impeller: BRONZE
- Shaft : AISI 316 STAINLESS STEEL
- Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof)
See below models and performances
- Description
- Reviews (0)
Description
CEM AM serie includes self priming centrifugal electric pumps made in bronze (slow priming) capable of transfer or supply large flow of liquid. They are widely used in the nautical sector to empty bilges, fire-fighting equipment, ballast, washing of decks and chains and air conditioning systems. The particular impeller shape allows the transferring of liquid with small solid parts in suspension.
PERFORMANCES
| Model Type |
Material | Voltage (V) |
Potenza Power |
Absorption (A) |
Giri/min. RPM |
Max. delivery (l/min.) |
Max. head (m) |
|
| HP | kW | |||||||

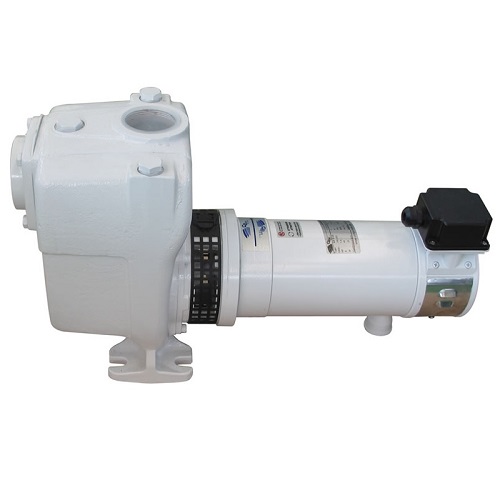

| AM 512B | Bronzo Bronze |
24V | 1,5 | 1,1 | 50 | 2800 | 500 | 15,5 |
| 230M | 1,5 | 1,1 | 7,4 | 2800 | 500 | 15,5 | ||
| 230÷400T | 1,5 | 1,1 | 4,7÷2,7 | 2800 | 500 | 15,5 | ||
| AM 512A | Bronzo Bronze |
230M | 2 | 1,5 | 9,2 | 2800 | 550 | 19,5 |
| 230÷400T | 2 | 1,5 | 7,5÷4,3 | 2800 | 550 | 19,5 | ||
| AM 615C | Bronzo Bronze |
230÷400T | 3 | 2,2 | 10÷5,8 9,15÷5,3 |
2800 | 800 | 17,5 |
| AM 615B | Bronzo Bronze |
230÷400T | 4 | 3 | 11,5÷6,6 | 2800 | 900 | 21,5 |
| AM 615A | Bronzo Bronze |
230÷400T | 5,5 | 4 | 9,6 | 2800 | 950 | 29 |
| AM 801B | Bronzo Bronze |
230÷400T | 7,5 | 5,5 | 10,9 | 2800 | 1100 | 27 |
| AM 801A | Bronzo Bronze |
230÷400T | 10 | 7,5 | 14,3 | 2800 | 1100 | 34 |
| AM 40 | Bronzo Bronze |
230M | 4 | 3 | 17,4 | 2800 | 450 | 28 |
| 230÷400T | 4 | 3 | 11,6÷6,7 | 2800 | 450 | 28 | ||
| AM 50 | Bronzo Bronze |
230÷400T | 7,5 | 5,5 | 21,3÷12,3 | 2800 | 750 | 36 |
| AM 65 | Bronzo Bronze |
400÷690T | 15 | 11 | 21÷12,1 | 2800 | 1300 | 48 |
| AM 65/1 | Bronzo Bronze |
400÷690T | 25 | 18 | 35÷20,5 | 2800 | 1500 | 56 |
CONSTRUCTION FEATURES
- Pump body: BRONZE
- Motor support: BRONZE
- Impeller: BRONZE
- Shaft : AISI 316 STAINLESS STEEL
- Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof)
MOTOR
- Direct Current:
Permanent magnets electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1). - Alternate Current:

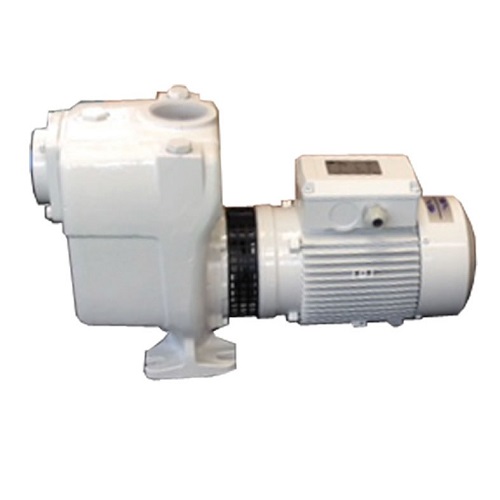

Induction electric motor, 230V single-phase (M) / 230÷400V or 400÷690V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
SCOPE
- Solid parts handling (max. Ø) : AM40: 4,5 mm / AM50: 8 mm / AM65-AM65/1: 14 mm / AM512: 10 mm / AM615: 15 mm / AM810: 15 mm
- Temperature range of the liquid: from +0 to +70°C
- Max. suction depth:
AM40: 4,5m. / AM50:5,5 m / AM65: 7,5 m
AM512, AM615 e AM 801: 6 m - Static pressure inside the pump body: 6 bar max
ACCESSORIES ON REQUEST
- Threaded counter flanges made in bronze for AM40, AM50, AM65, AM65/1
- Omega base with antivibrations
12V-24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T / 400÷690T, 50Hz: three-phase alternate current
Available on request other voltages at 50Hz and 60Hz.
Be the first to review “CEM AM self priming centrifugal pumps”
Related Products
-

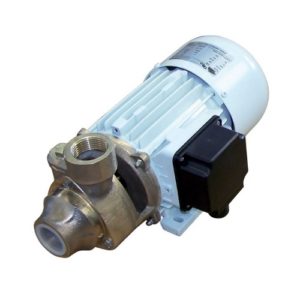

Read moreQuick ViewCEM PB marine peripheral pump (bronze)
CEM PB serie is a single-impeller peripheral electric pump capable of developing high pressure as compared to limited flow rate. This electric pump is widely used in the nautical sector to deliver fresh water or sea water, to wash decks and chains, or to deliver pressurised water to on-board appliances such as showers, washbasins, toilets, etc. Automatic operation is achieved by equipping the pump with small or medium-sized surge tank.
CONSTRUCTION FEATURES
- Pump body: BRONZE.
- Motor support: BRONZE.
- Shaft: AISI 316 STAINLESS STEEL.
- Impeller: BRASS ALLOY
- Mechanical seet: CERAMICS-GRAPHITE-NBR (special corrosion-proof)
See below models and performances
Read moreQuick View -
Read moreQuick ViewCEM J-INOX marine self-priming centrifugal pump
Self-priming centrifugal electric pump Jet type with closed impeller, featuring a high suction capacity, widely used to deliver pressurized water to on-board appliances (such as showers, kitchens ,washbasins, toilets, etc.), for air-conditioning units, fire–fighting, washing of decks and chains. J-INOX pump is suitable for fresh water.
CONSTRUCTION FEATURES
Pump body: AISI 304 STAINLESS STEEL
Shaft : AISI 316 (d.c.) – AISI 420 (a.c.) STAINLESS STEEL
Diffuser and Venturi tube: NORYL (Technopolymer)
Impeller/s: NORYL (Technopolymer).
Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof).Also available as water pressure systems with electronic control system EPC (Electronic pressure control system) or with tank
See below models and performances
Read moreQuick View -
Read moreQuick ViewCEM MG-INOX marine self-priming centrifugal pump
Self-priming centrifugal electric pump Jet type with closed impeller, featuring a high suction capacity, widely used to deliver pressurized water to on-board appliances (such as showers, kitchens ,washbasins, toilets, etc.), for air-conditioning units, fire–fighting, washing of decks and chains. MG-INOX pump is suitable for fresh water.
CONSTRUCTION FEATURES
Pump body: AISI 304 STAINLESS STEEL
Shaft : AISI 316 (d.c.) – AISI 420 (a.c.) STAINLESS STEEL
Diffuser and Venturi tube: NORYL (Technopolymer)
Impeller/s: NORYL (Technopolymer).
Mechanical seal: CERAMICS – GRAPHITE – NBR (special corrosion-proof).See below models and performances
Read moreQuick View -

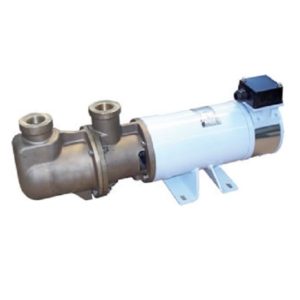

Read moreQuick ViewCEM SBM rotary self-priming volumetric pumps
