CEM SBM rotary self-priming volumetric pumps
SBM serie is a rotary self-priming volumetric electric pump widely used in the nautical sector for emptying waste tanks, toilet sewage, particularly viscous, oily fluids or liquids with small solid bodies in suspension.
CONSTRUCTION FEATURES
- Pump body: AISI 316 STAINLESS STEEL
- Shaft : AISI 316 STAINLESS STEEL
- Impeller options: NEOPRENE (CR) for sea water and non-oily liquids
- NITRILE (NBR) for oil and diesel oil
- Mechanical seal: STEEL-GRAPHITE-NBR (special corrosion-proof).
See below models and performances
- Description
- Reviews (0)
Description
SBM serie is a rotary self-priming volumetric electric pump widely used in the nautical sector for emptying waste tanks, toilet sewage, particularly viscous, oily fluids or liquids with small solid bodies in suspension.
PERFORMANCES
| Model Type |
Material | Voltage (V) |
Power | Absorption (A) |
Giri/min. RPM |
Max. delivery (l/min.) |
Max. head (m) |
|
| HP | kW | |||||||
| SBM-mini | Inox Aisi 316 S.S. Aisi 316 |
12 | 0,4 | 0,3 | 30 | 1400 | 27 | 32 |
| 24 | 0,4 | 0,3 | 16 | 1400 | 27 | 32 | ||
| 230M | 0,75 | 0,55 | 3,8 | 1400 | 27 | 32 | ||
| 230÷400T | 0,75 | 0,55 | 3÷1,7 | 1400 | 27 | 32 | ||
| SBM-mini/1 | Inox Aisi 316 S.S. Aisi 316 |
230M | 0,5 | 0,37 | 3,7 | 900 | 17 | 24 |
| 230÷400T | 0,5 | 0,37 | 2,1÷1,1 | 900 | 17 | 24 | ||
| SBM-midex | Inox Aisi 316 S.S. Aisi 316 |
12 | 0,75 | 0,55 | 55 | 900 | 64 | 27 |
| 24 | 0,75 | 0,55 | 28 | 900 | 64 | 27 | ||
| 230M | 0,75 | 0,55 | 4,4 | 900 | 64 | 27 | ||
| 230÷400T | 0,75 | 0,55 | 2,9÷1,7 | 900 | 64 | 27 | ||
| SBM-midex/2 | Inox Aisi 316 S.S. Aisi 316 |
12 | 1 | 0,75 | 60 | 1400 | 96 | 30 |
| 24 | 1 | 0,75 | 30 | 1400 | 96 | 30 | ||
| 230M | 1 | 0,75 | 7,1 | 1400 | 96 | 30 | ||
| 230÷400T | 1 | 0,75 | 3,6÷2,1 | 1400 | 96 | 30 | ||
| SBM-minor | Inox Aisi 316 S.S. Aisi 316 |
230M | 2 | 1,5 | 13 | 900 | 115 | 27 |
| 230÷400T | 2 | 1,5 | 7,1÷4,1 | 900 | 115 | 27 | ||
| SBM-major | Inox Aisi 316 S.S. Aisi 316 |
230÷400T | 2 | 1,87 | 9,5÷5,5 | 900 | 375 | 18 |
| SBM-maxi | Inox Aisi 316 S.S. Aisi 316 |
230÷400T | 4,5 | 3,4 | 14,3÷8,3 | 600 | 730 | 18 |
CONSTRUCTION FEATURES
- Pump body: AISI 316 STAINLESS STEEL
- Shaft : AISI 316 STAINLESS STEEL
- Impeller options: NEOPRENE (CR) for sea water and non-oily liquids
- NITRILE (NBR) for oil and diesel oil
- Mechanical seal: STEEL-GRAPHITE-NBR (special corrosion-proof).
MOTOR
- Direct Current:

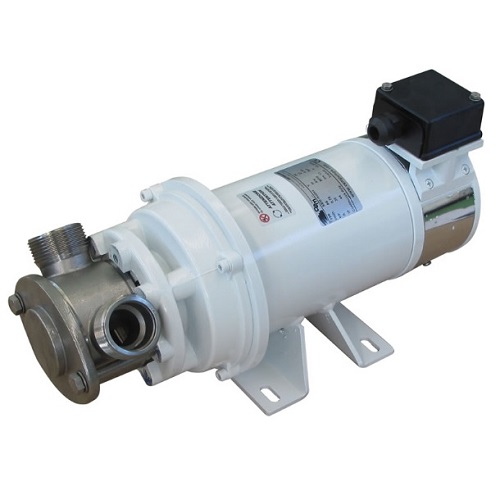

Permanent magnets electric motor 12/24V, Protection IP44, Insulation Class F, Continuous Duty (S1). - Alternate Current:

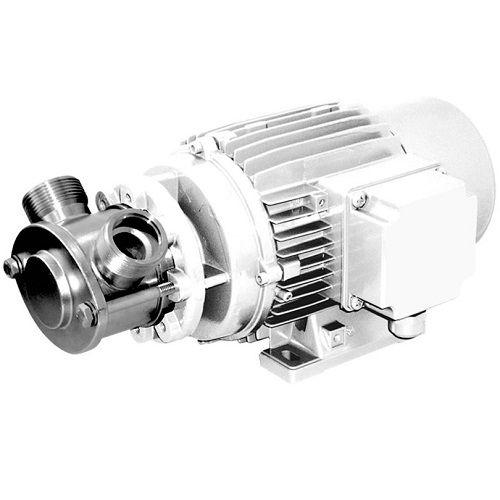

Induction electric motor 230V single-phase (M) / 230-400V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
SCOPE
- Temperature range of the liquid: from +0 to +70 °C
- Max. suction depth: 6 meter
- Static pressure inside the pump body: 6 bar max.
- The electric pump should never be run when empty except for the time strictly necessary for priming.
ACCESSORIES ON REQUEST
- Abrasion-proof high temperature mechanical seal (max. 150°C) made in VIDIA-VITON
- “Omega” base made in stainless steel with anti vibrations
- Temperature sensor to avoid dry dunning
12V-24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T, 50Hz: three-phase alternate current
Available on request other voltages at 50Hz and 60Hz.
